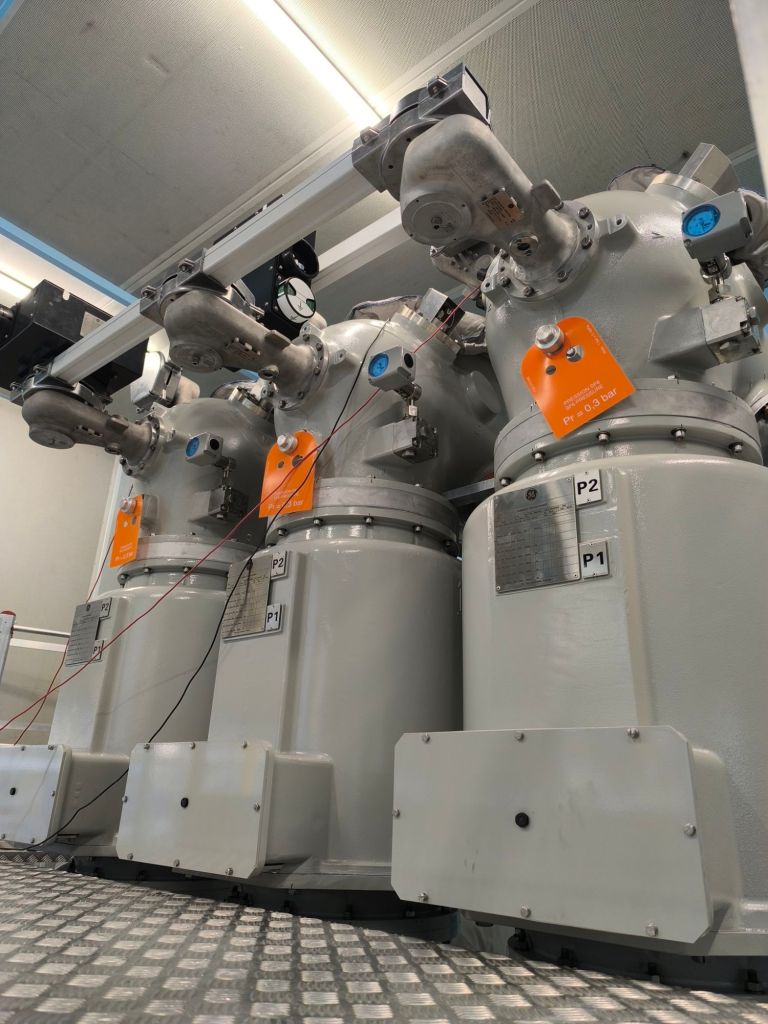

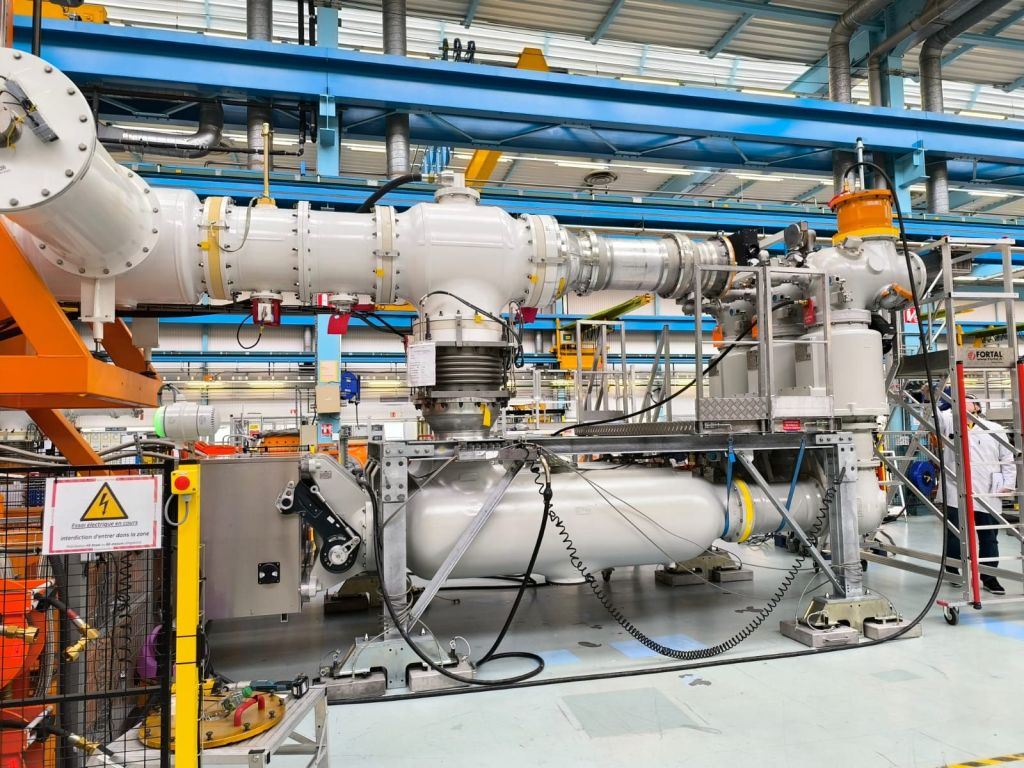

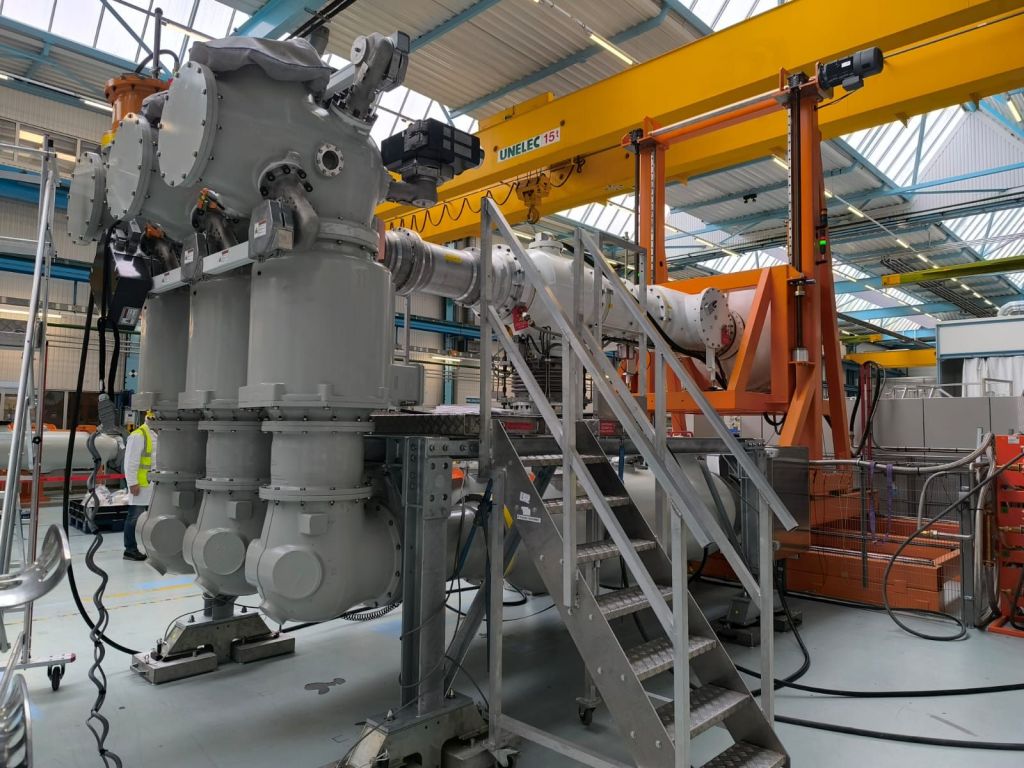

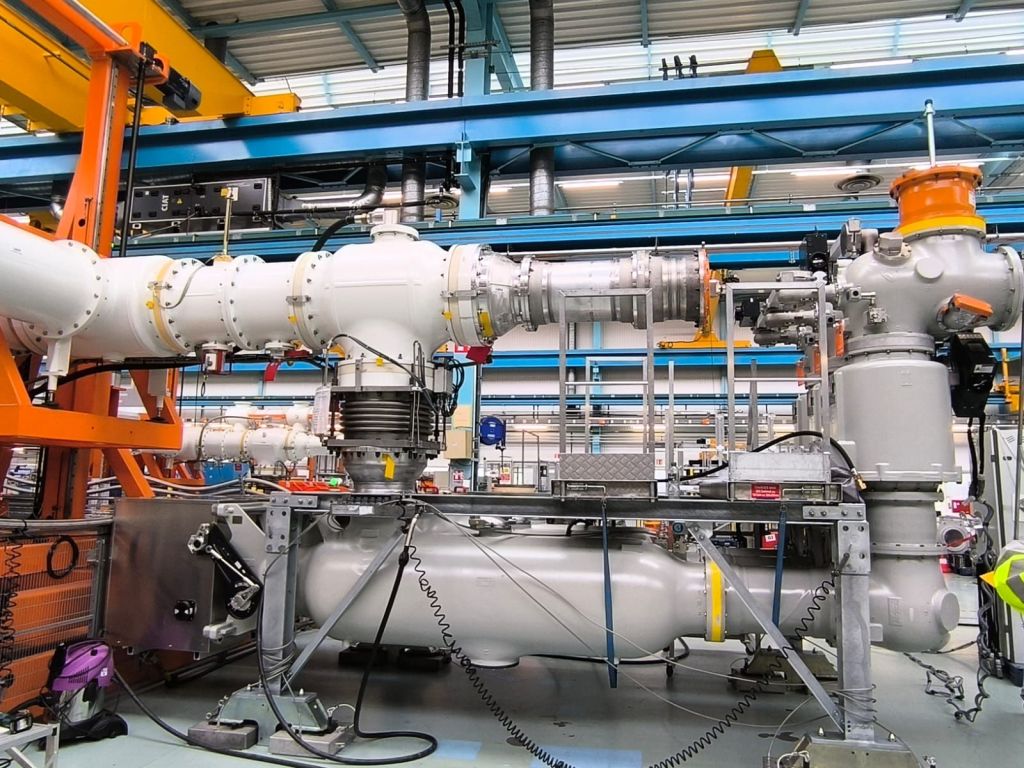

275kV Switchgear Sample Pictures (Offshore Project)- During Installation phase (Used for training purposes only):

Nameplate data:

(IEC 62271-1 , -10 / 40°C , M2 ,

Ur/Up/Us : 300/1425/1050kV

Kpp 1.5

II/Ir/Isc : 1500/200A/40kA , tk: 1sec , fr: 50Hz,

Pre/a/m: 6.3 / 6 / 5.7 bar , pcs : 50 2% , t : 45ms

M/m : 1010 / 1038 kg , O-0.3s-CO-3min-CO
